Group Halonen WeerakkodiMohottige Zakharov

1. Lab Safety Training

Before operating the EPILOG LASER FUSION cutter at Oulu’s Super FabLab, we participated in a comprehensive lab safety training session from Gleb. The training included:
1. Awareness of fire hazards and emergency response procedures (e.g., identifying the location of fire extinguishers).
2. Importance of proper ventilation and fume extraction systems.
3. Safe handling of materials to prevent exposure to toxic fumes.
4. Guidelines for machine maintenance and safe operating practices.

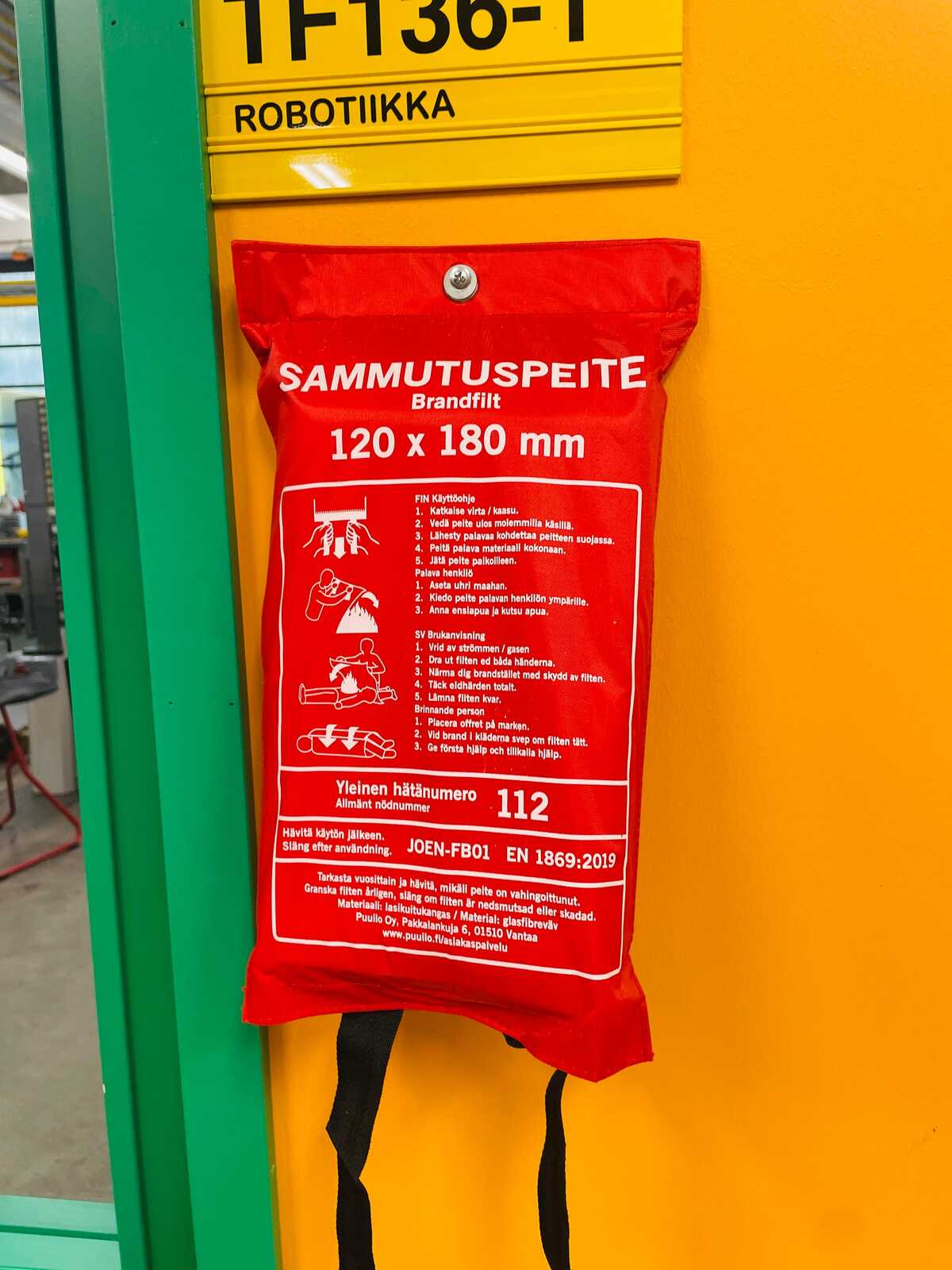

This is a fire blanket , designed to stop small fires by smothering them.

1.Turn off the power or gas source.
2.Pull the tabs to release the blanket.
3.Approach the fire carefully with the blanket as a shield.
4.Cover the burning object completely.
5.Leave the blanket in place to cool.
6.For a person on fire — wrap them in the blanket, help them lie down, and call for help.

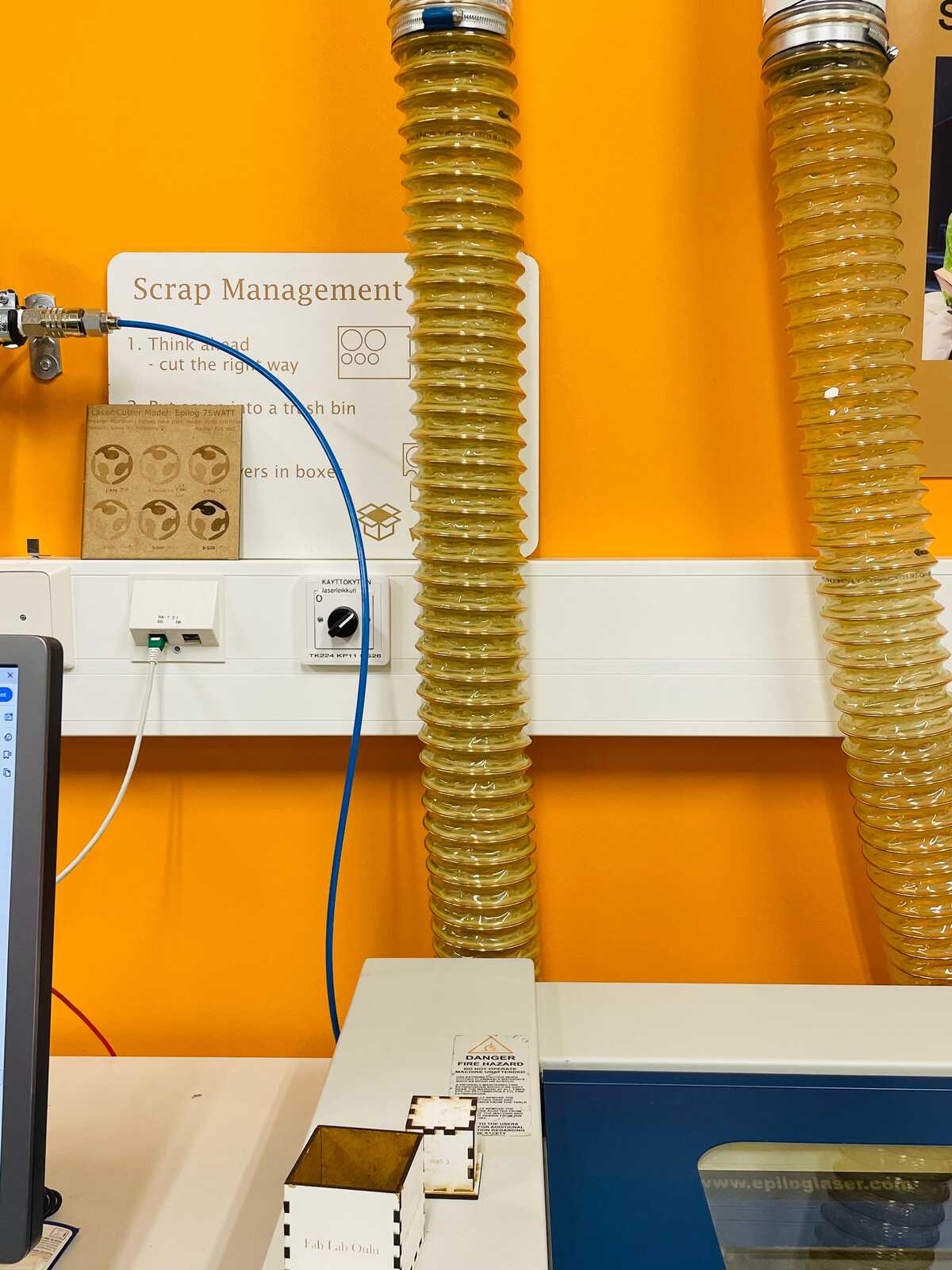

Vent tubes

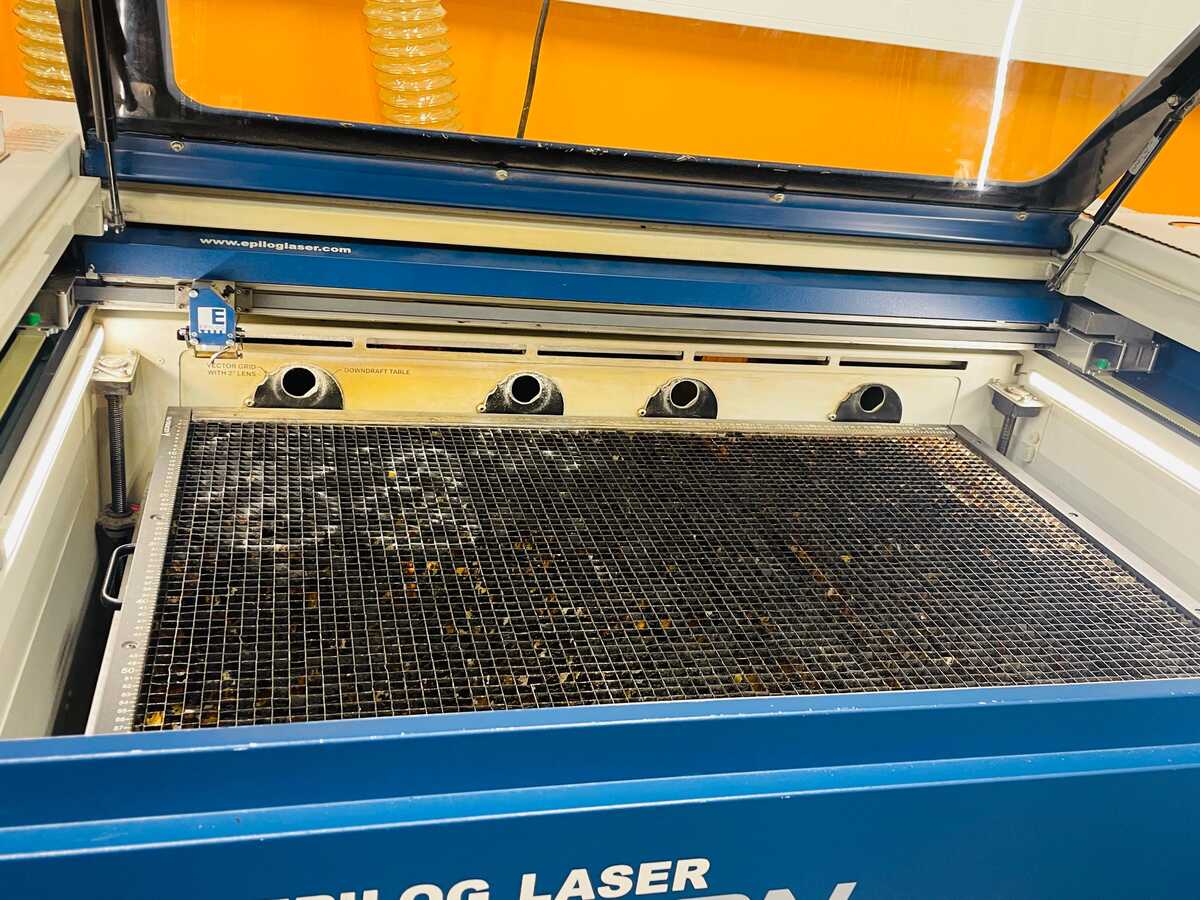

Vent holes

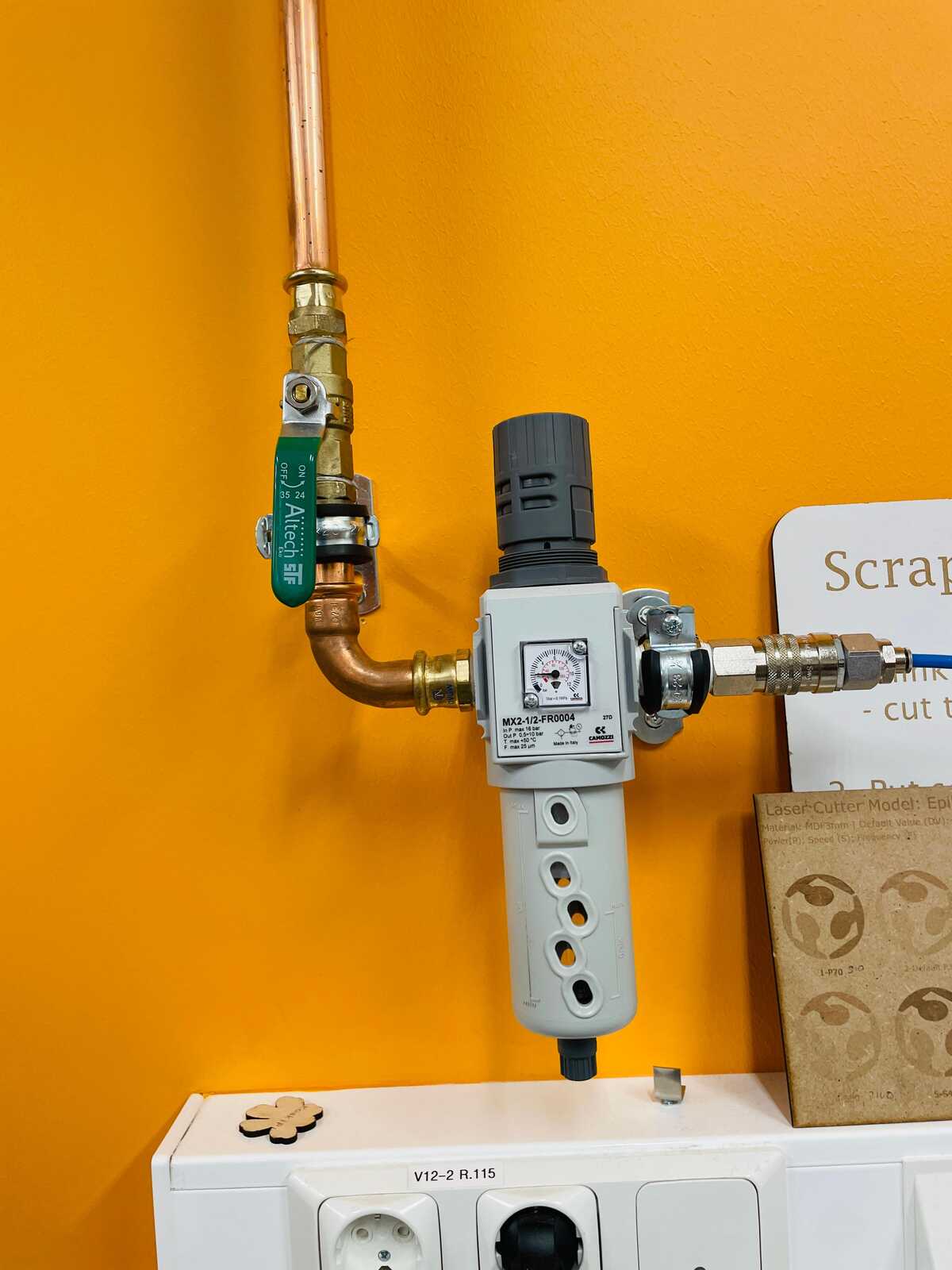

Pressurised air releace

Keep the lid closed at least for 1 minute after the cut

2. Laser Cutter Raster and Vector Setting Printing Variations

Machine Setup Steps

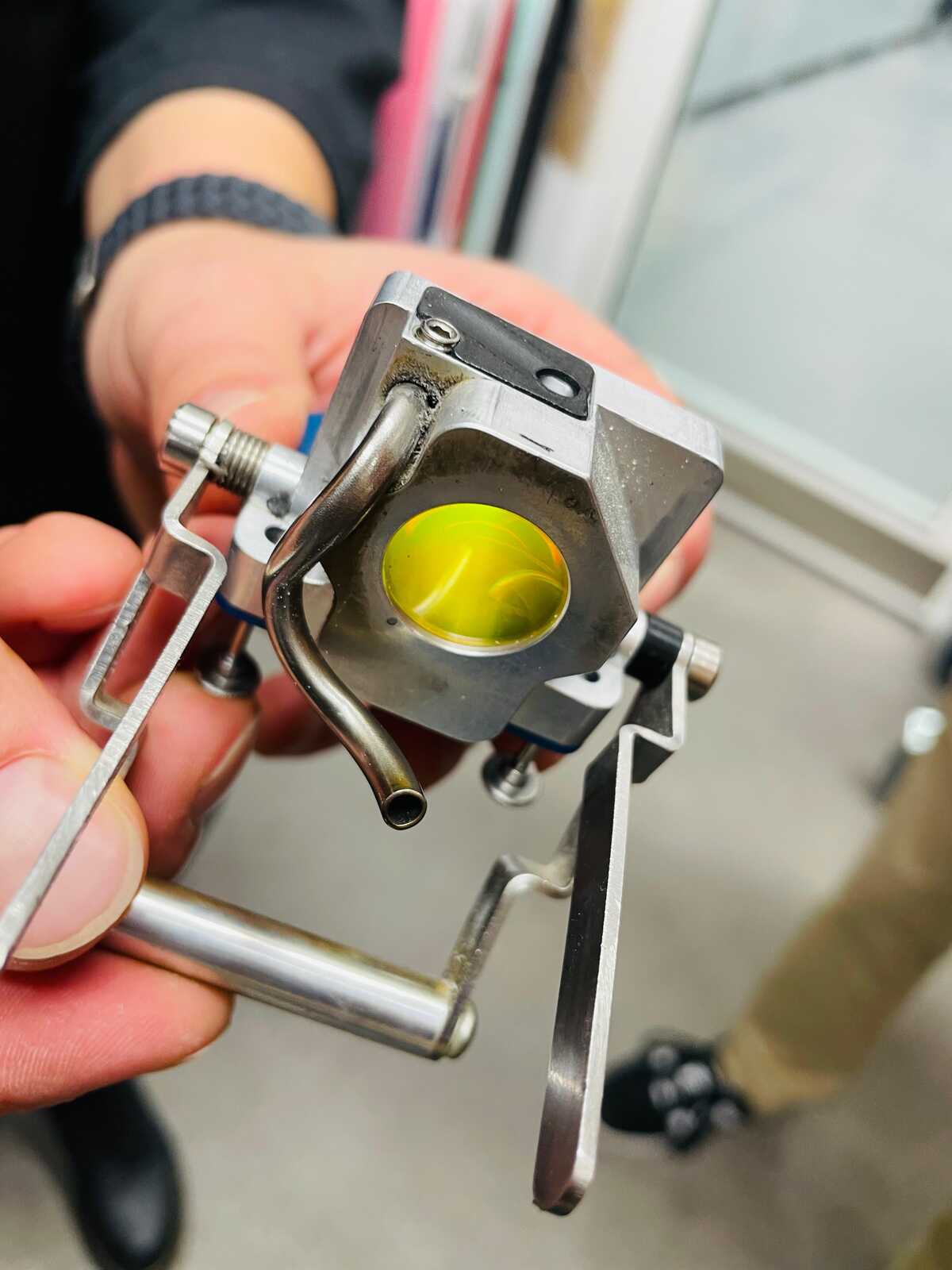

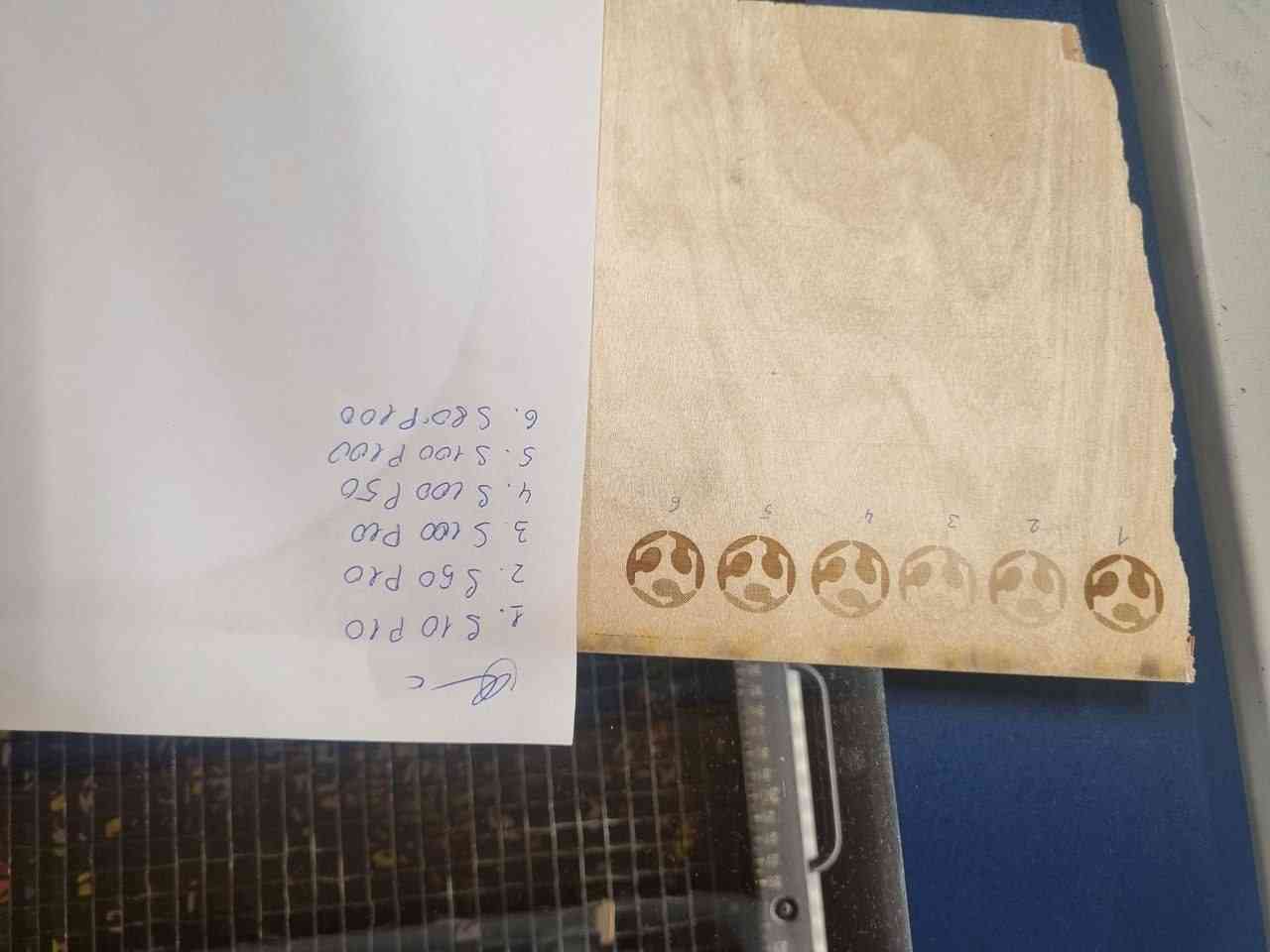

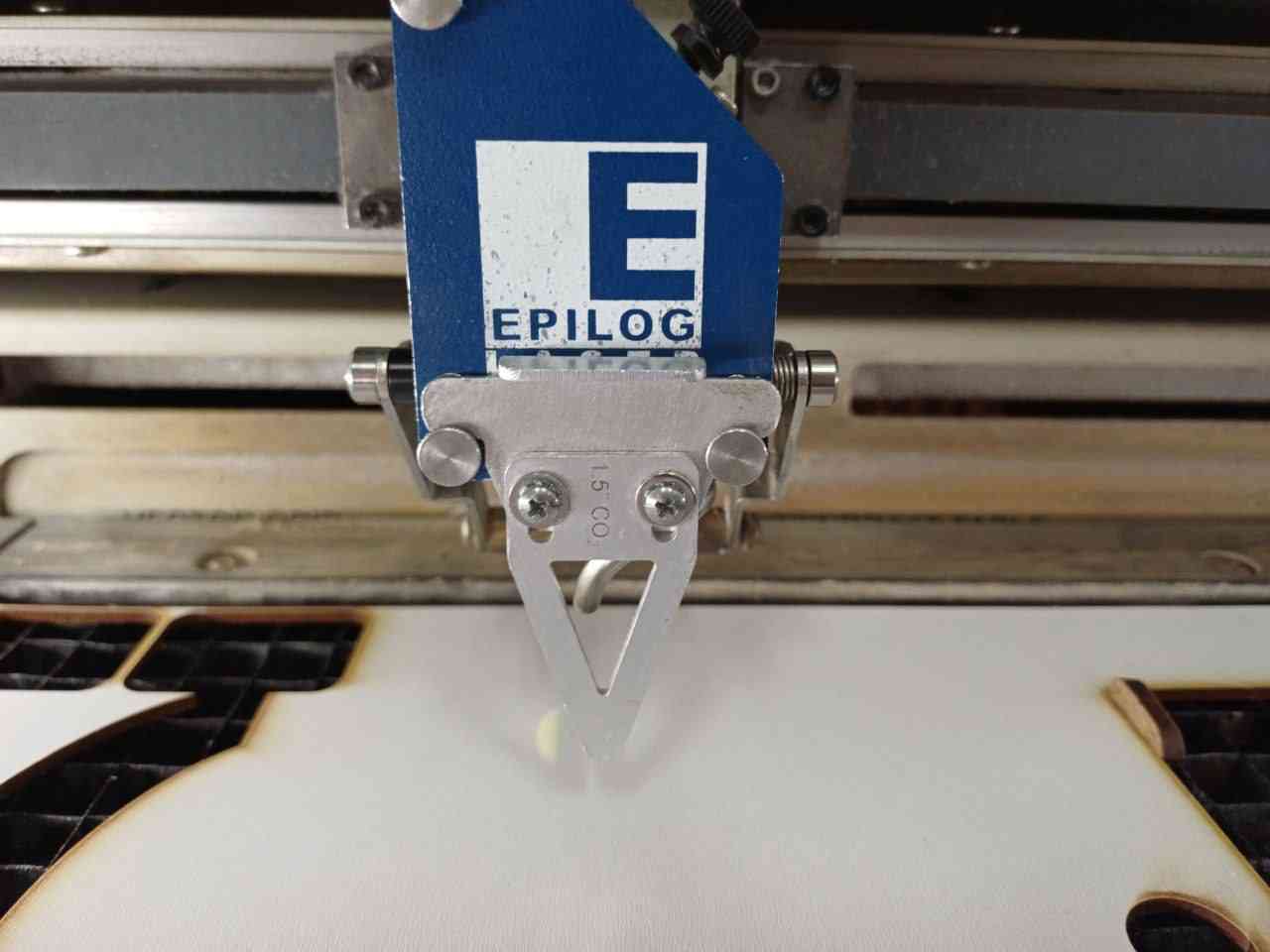

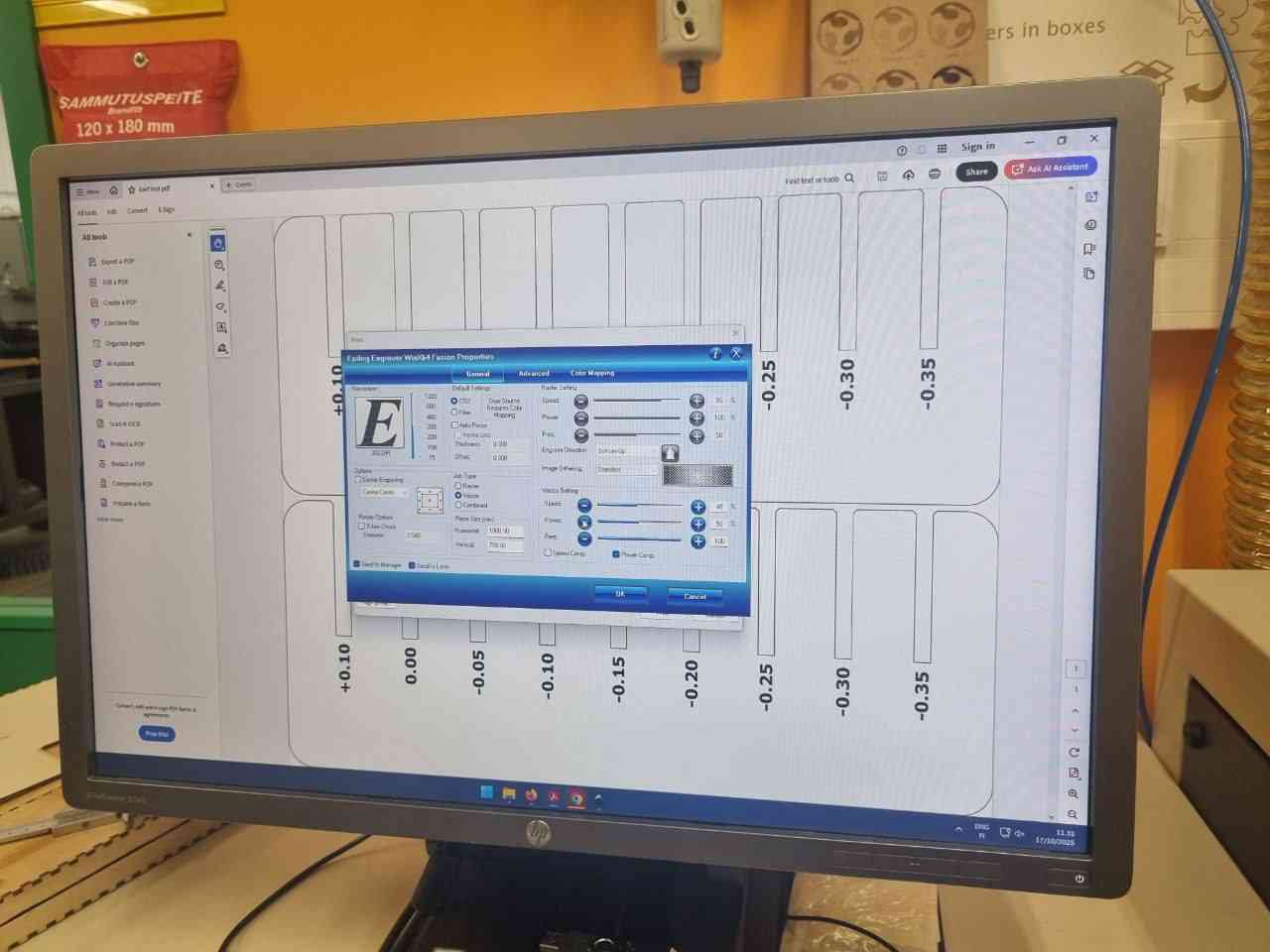

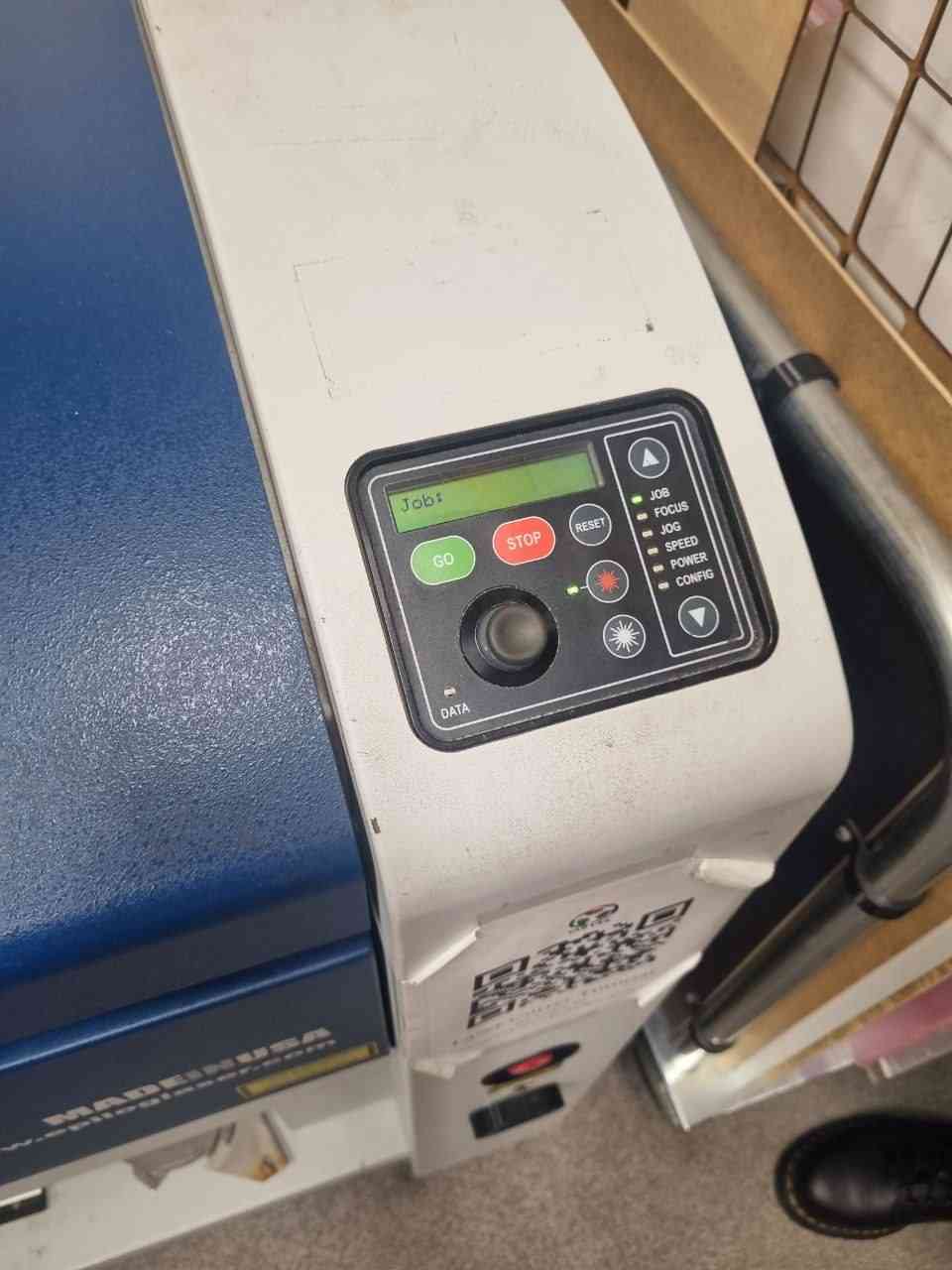

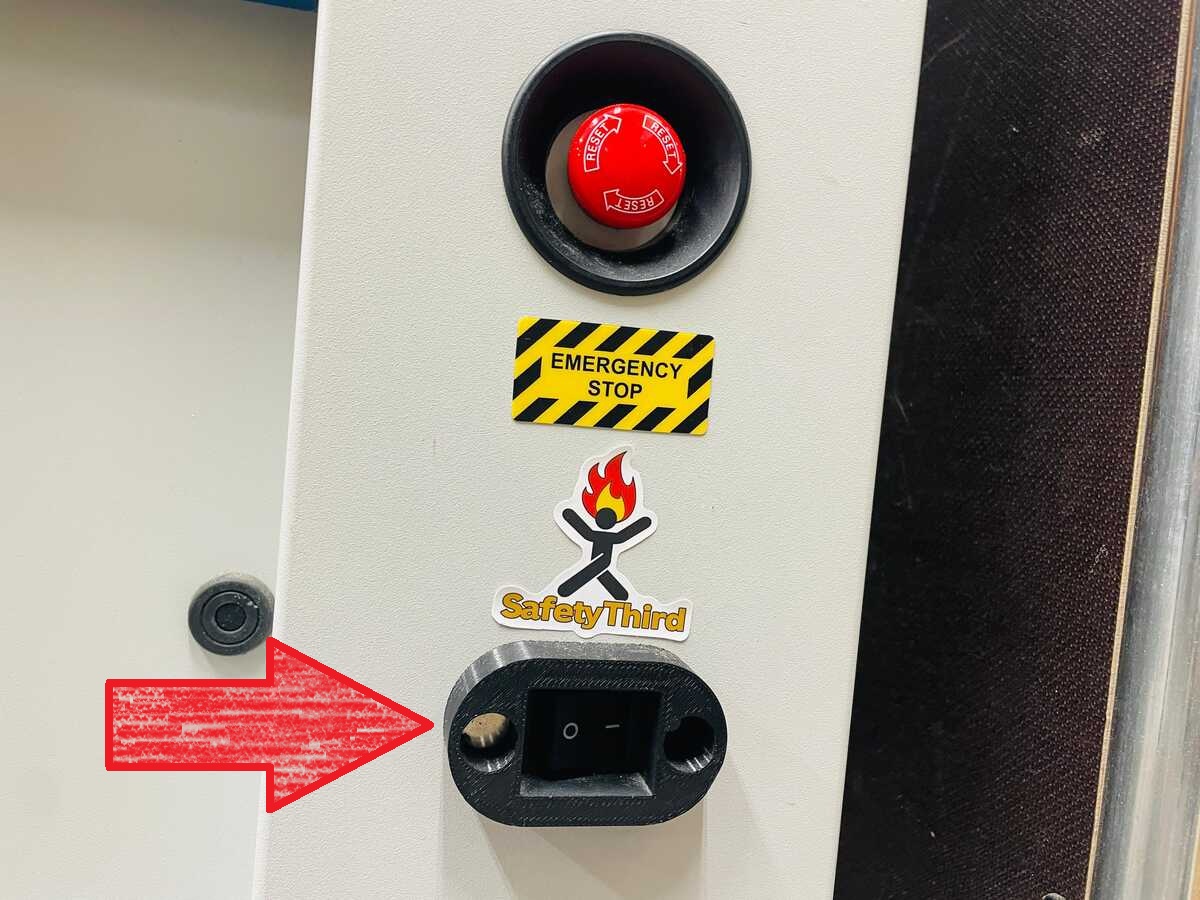

Power on the laser cutter with the lid closed Use the jog to move around, then press the joystick to establish the deafult coordinate Pin the material with these if it is bendy Use the focus tool mode in combination with the metal thingy to focus the lazer, better focus means thin cut == less material loss. You need to bring the metal thingy as close to the object that you are cutting as you can Apply paramiters Send the file to the lazer cutter via the print button Engravings at diffrent params
